Building a Binary 4DIAC-IDE Package from Source

For building a binary 4DIAC-IDE package from the source code Eclipse provides a product export wizard. The necessary steps are:

  1. Have the 4DIAC-IDE source code in an Eclipse workspace as described in Building and Running 4DIAC-IDE from Source
  2. Press Eclipse Product Export Wizard in the Exporting Section of the product-file editor.

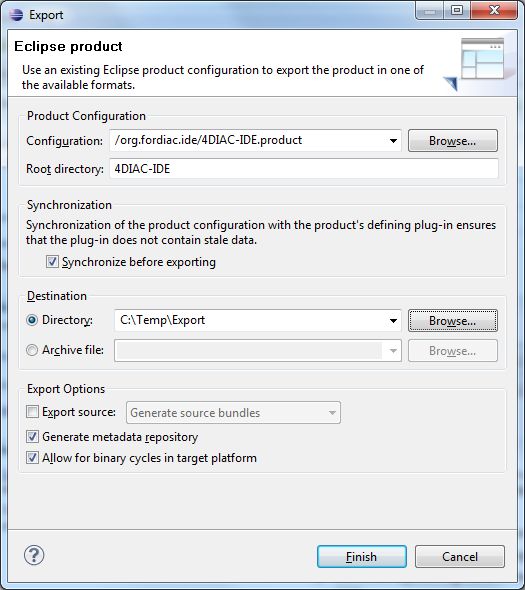

    Product export

  3. Specify Root Directory - e.g. 4DIAC-IDE
  4. Specify Destination"
  5. After pressing Finish your product configuration is exported.
  6. In the exported product, you need the typelibrary of an other 4DIAC-IDE and you have to copy or add the template directory of an other 4DIAC-IDE otherwise creating new FB types will not provide any template.
